Donation package extra
€500

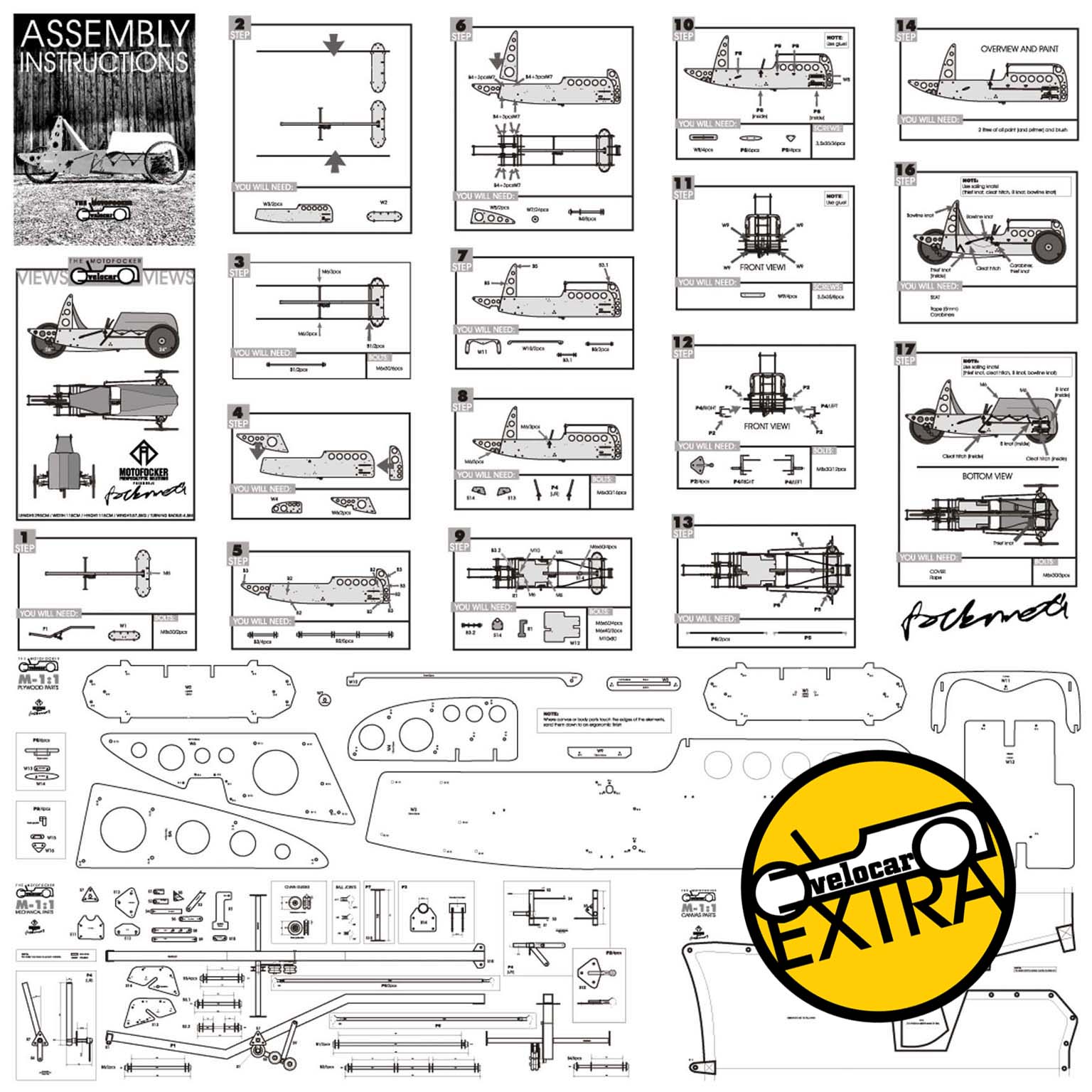

The package includes three M=1:1 blueprints (wood, canvas and steel parts separately) and assembly instructions.
If you order a kit or a complete Velocar later on, we will credit you the full amount!
Description
The M=1:1 blueprints included in the package can be used as templates to make the builders’ job easier. The package also includes a certificate, a thank you letter and a one-off licence.
By supporting the start of production of the Motofocker Velocar, you have also agreed to receive a licence to build only one vehicle. Reproduction of the designs is considered an infringement of copyright.
If you order a kit or a complete Velocar in the future, we will credit you the full amount!
LIST OF MATERIALS
- 2 sheets of 12mm water and cooking resistant birch plywood (1250x2500mm)
- 4m canvas
- 20m 5mm rope
- 11m 10mm threaded rod
- 1m 8mm threaded rod
- 1m 6mm threaded rod
- 12m 10x1mm steel tube
- 2m 40x40x1,5mm steel hollow section
- 1,5m 20x20x2mm steel hollow section
- 400x300x4mm steel plate
- 400x200x3mm steel plate
- 10mm washer 100pcs
- 8mm washer 50pcs
- 6mm washer 70pcs
- M10 nut 70pcs
- M8 nut 40pcs
- M6 nut 50pcs
- M10x60mm bolt 2pcs
- M8x30mm bolt 30pcs
- M6x30mm screw 40pcs
- 3x35mm wood screw 20pcs
and
- ball joints
- rollers
- studs
- wheels
- brakes
- gear
- chain
- paint
- electrical equipment
- and whatever else you think is necessary…
